Elevator Bellcrank & Cable System

Started May 30, 2005

The elevator bellcrank consists of 2 halves with a 3/4" tube welded in the middle and separating the halves by about 7/16".

The two halves were made using the template method to copy the full size drawing in the plans. A left and right one with the flanges pointing in opposite directions are needed.
The 3/4" tube in the bellcrank slips over a 5/8" tube and pivots.  The 5/8" tube is welded to the fuselage on a couple of standoff tubes of the same diameter.

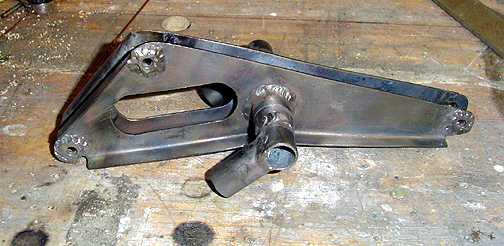

Here is the completed bellcrank assembly, ready to be installed in the fuselage:

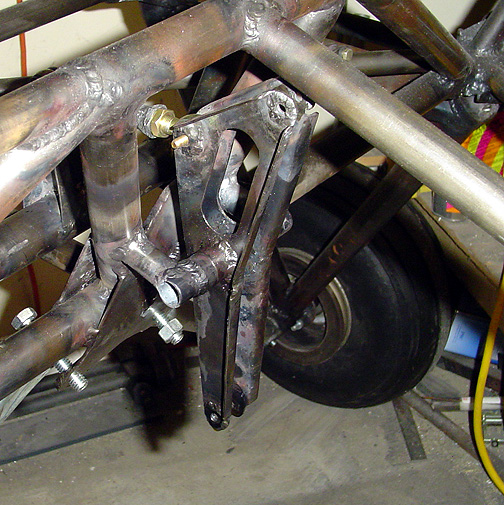

Here is the completed and installed Elevator Bellcrank:
